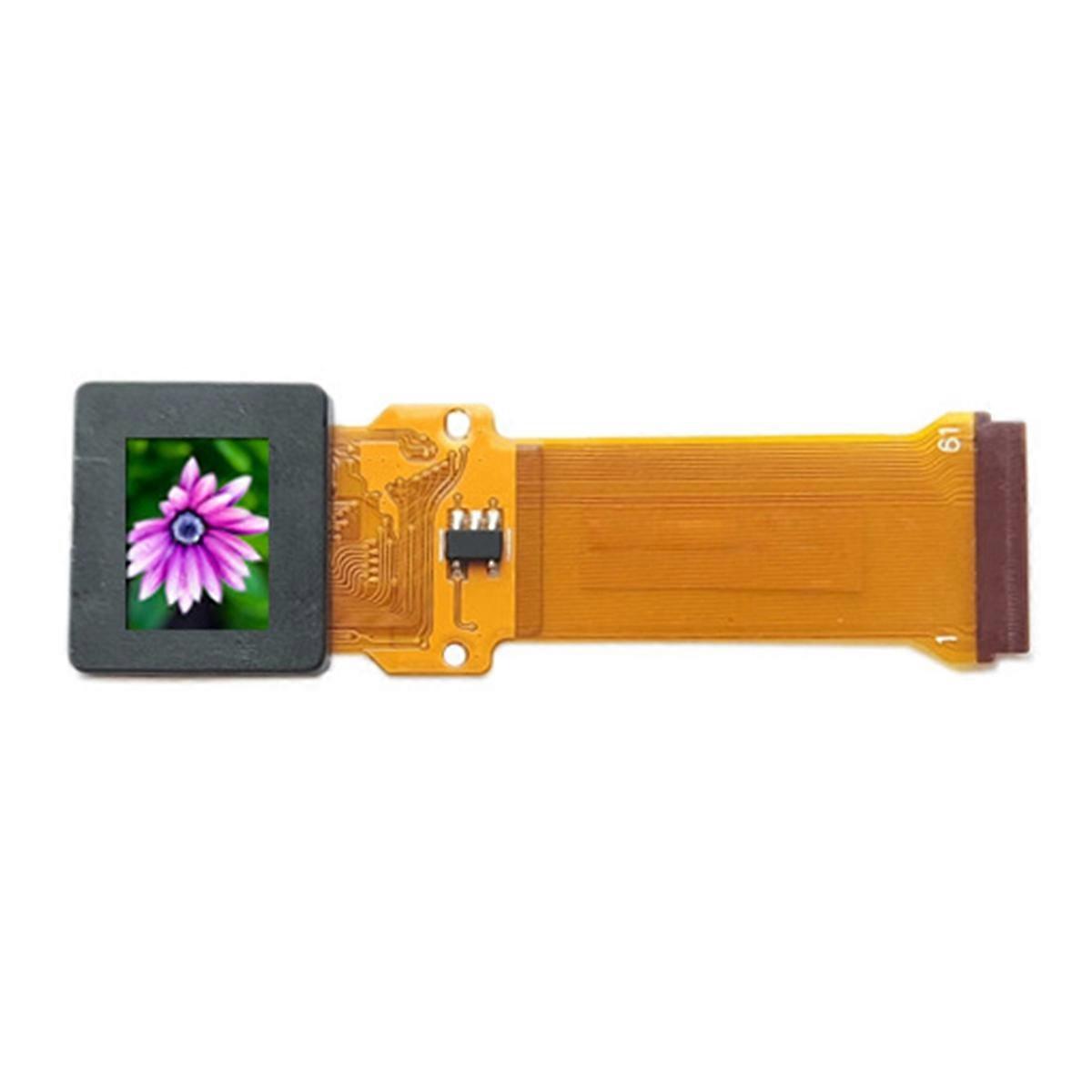

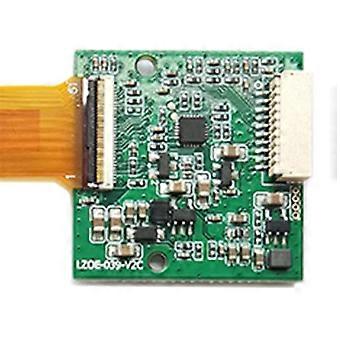

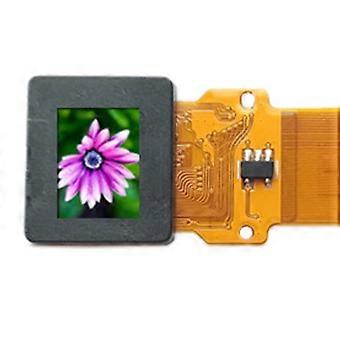

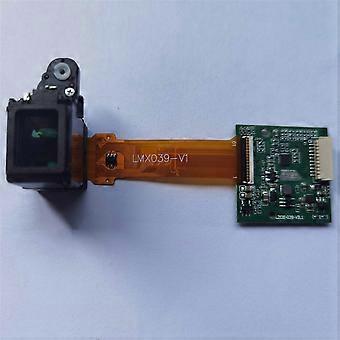

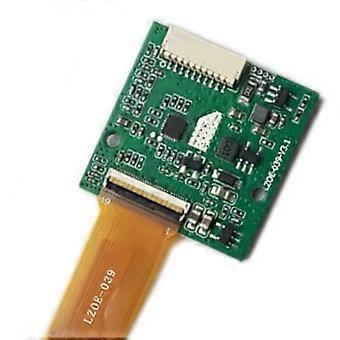

OL39E is a 0.39-inch full-color silicon-based display module with a 1024 x 768 dot matrix. The display module features high brightness, high contrast, narrow border, wide viewing angle, wide temperature range and low power consumption, and is used for portable displays, head-mounted displays, AR glasses, etc. Display color: full color Maximum resolution 1024 x 768 Digital video interface Support 24-bit RGB digital video Support 24-bit YCbCr digital video Support 16-bit 4:2:2 format YCbCr digital video Support scanning, digital signal enhancement, 8-bit input, 256-level grayscale display, 10-bit D/A conversion Horizontal/vertical image mirroring Can work at -40°C~65°C To the normal operation of the chip, a heat dissipation module needs to be configured, and the recommended operating temperature is ≤60° Our company has developed a CVBS (AV) analog video interface driver circuit, with a size of 28 x 28MM, a total power consumption of about 0.58W, and an operating voltage range of DC3.5-5V. Specifications: B:OLED screen Color: As shown Material: PCB Package Contents: 1 * Viewfinder Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
